Prerequisites Summary
NOTE : Visit the link for additional requirements for VMware Discovery along with DART.
The OmniDeq and its ecosystem is expected to be as per the following diagram. The major components of the ecosystem are,
-
OmniDeq Enterprise Server: This is a server/VM where OmniDeq Enterprise Software is installed, within the customer’s premise. The software is provided by CloudHedge for download via a secured URL
-
Source Application Servers: These are source servers/VM’s where applications are currently hosted. This is recommended to be a non-production environment.

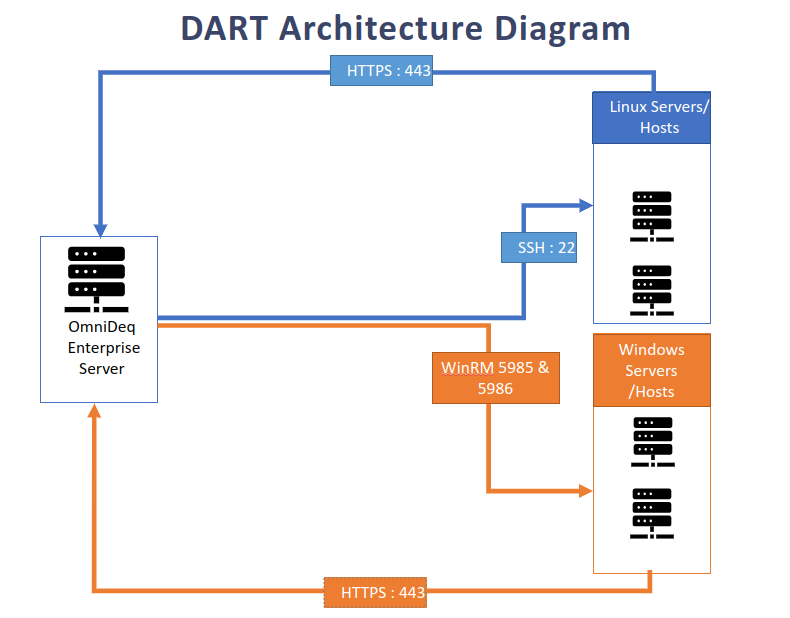

Network Diagram
Hardware Requirement
| Machine | OS | CPU/Disk | Disk Space |
|---|---|---|---|
| OmniDeq Appliance | Ubuntu 16+ / RHEL 7.6+, 8.x / CentOS 7.5+ | Atleast 4 cores and 16 GB RAM | 50GB disk space [/opt/] |
Software Requirement
| Docker | Docker compose | |
|---|---|---|
| Ubuntu | 17.3+ | 1.23.1+ |
| RHEL | 1.13.1+ | 1.23.1+ |
| CentOS | CE 18+ | 1.23.1+ |
OmniDeq appliance installation steps are documented at Link
User & Access Requirement
- OmniDeq Enterprise Server:
- User account with privilege access - Source Application Servers:
- Linux: User account with privilege access documented at Link
- Windows: User with local admin access documented at Link

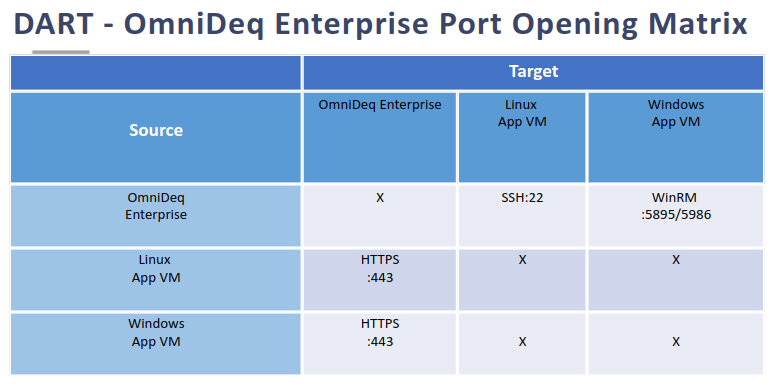

Port Configuration Matrix
