SAML integration with OmniDeq

• Create an account at https://www.okta.com

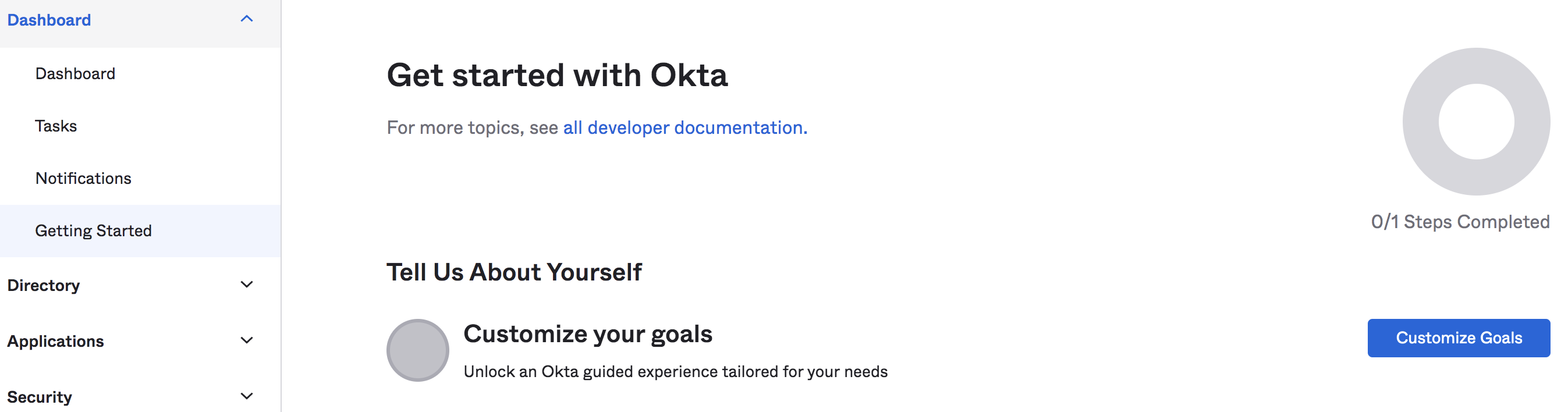

• Once account is activated, login to the portal and In the left hand navigation, select "Applications” under "Applications”

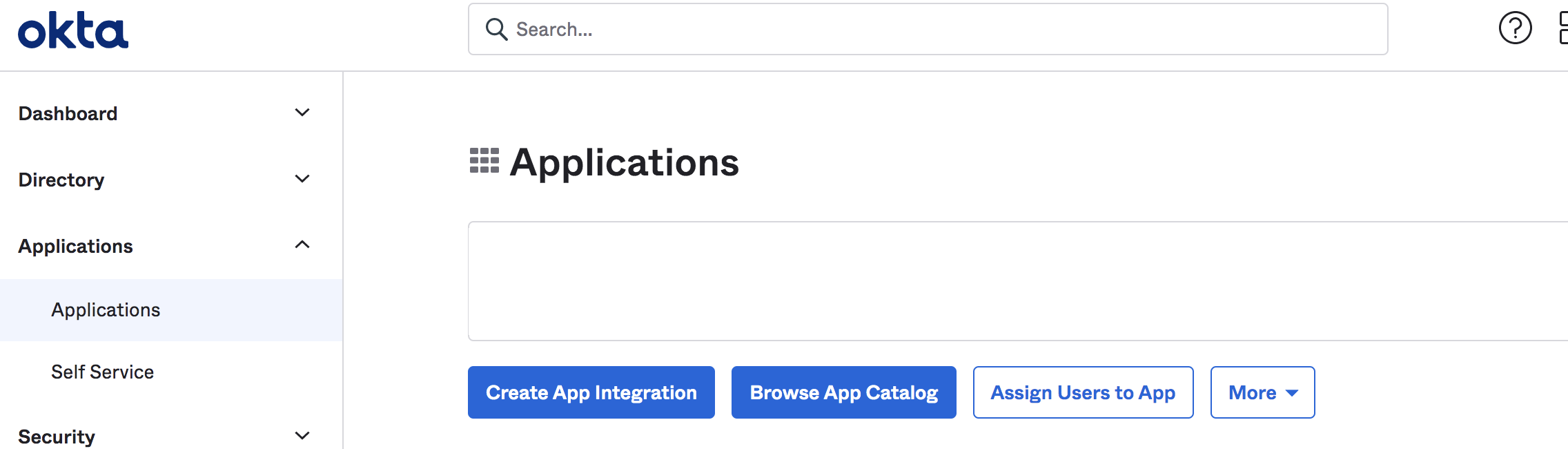

• Click on "Create App Integration”

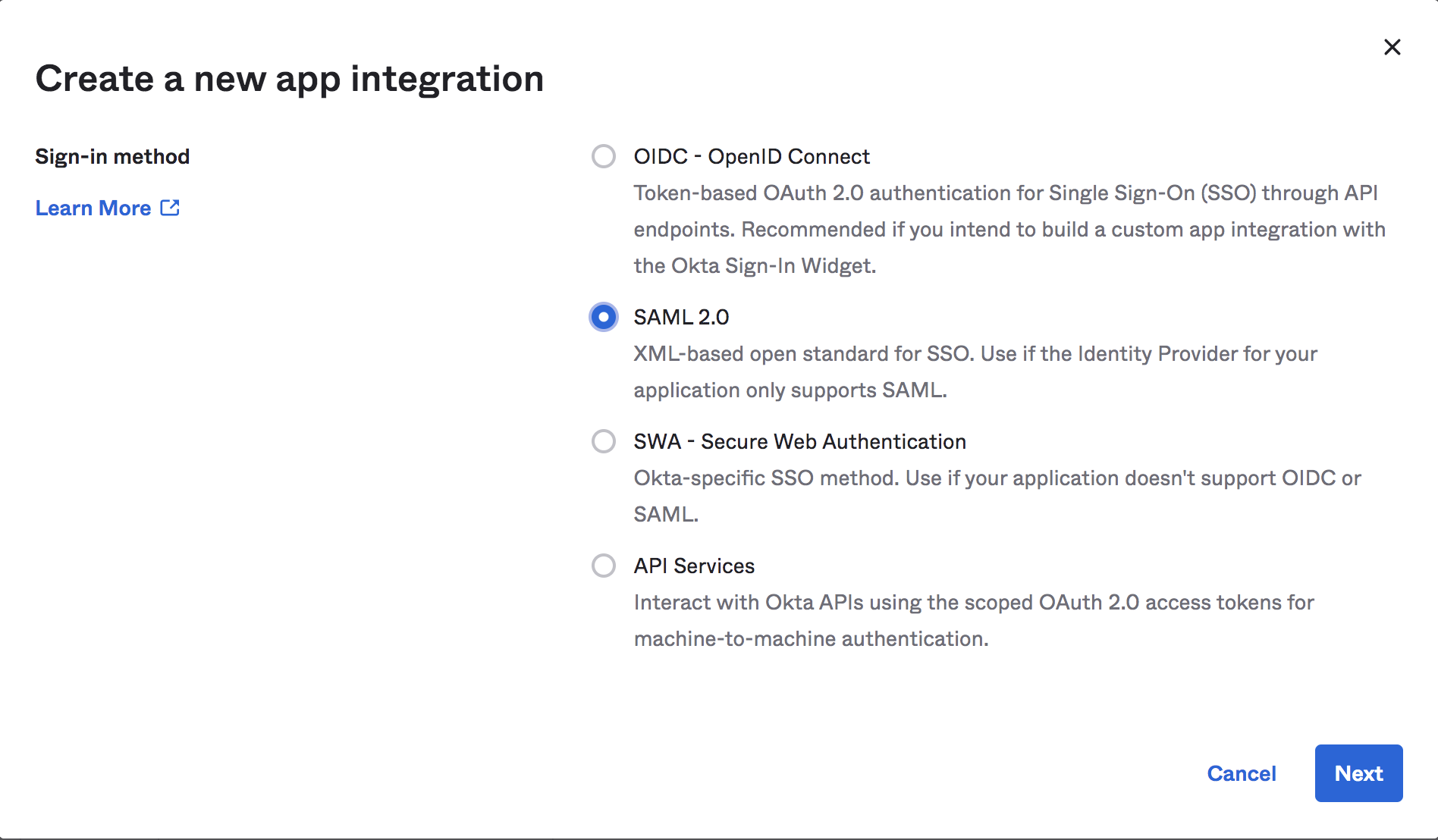

• Select SAML 2.0 in the next screen and click on Next

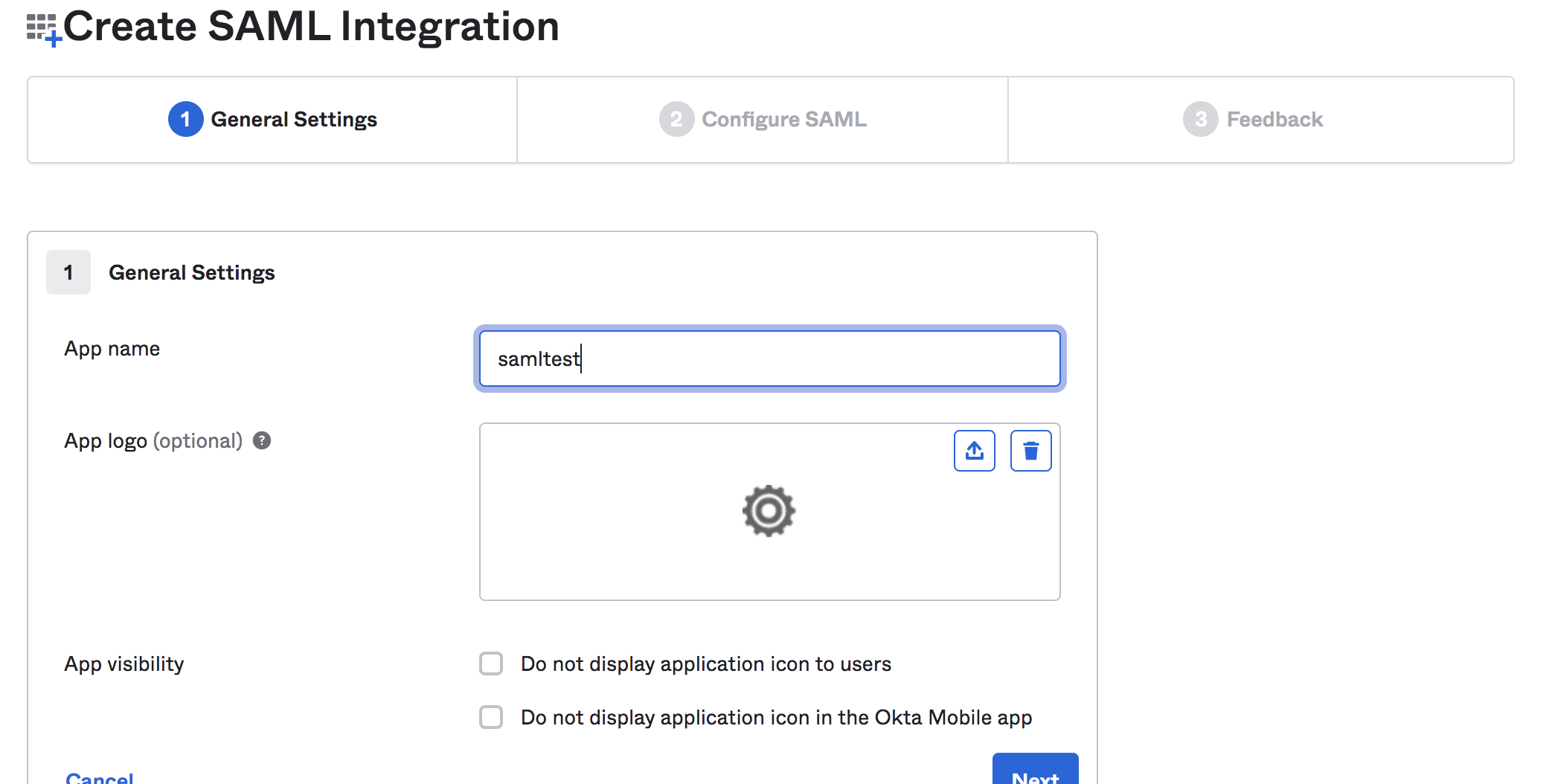

• Provide an App Name and click on next

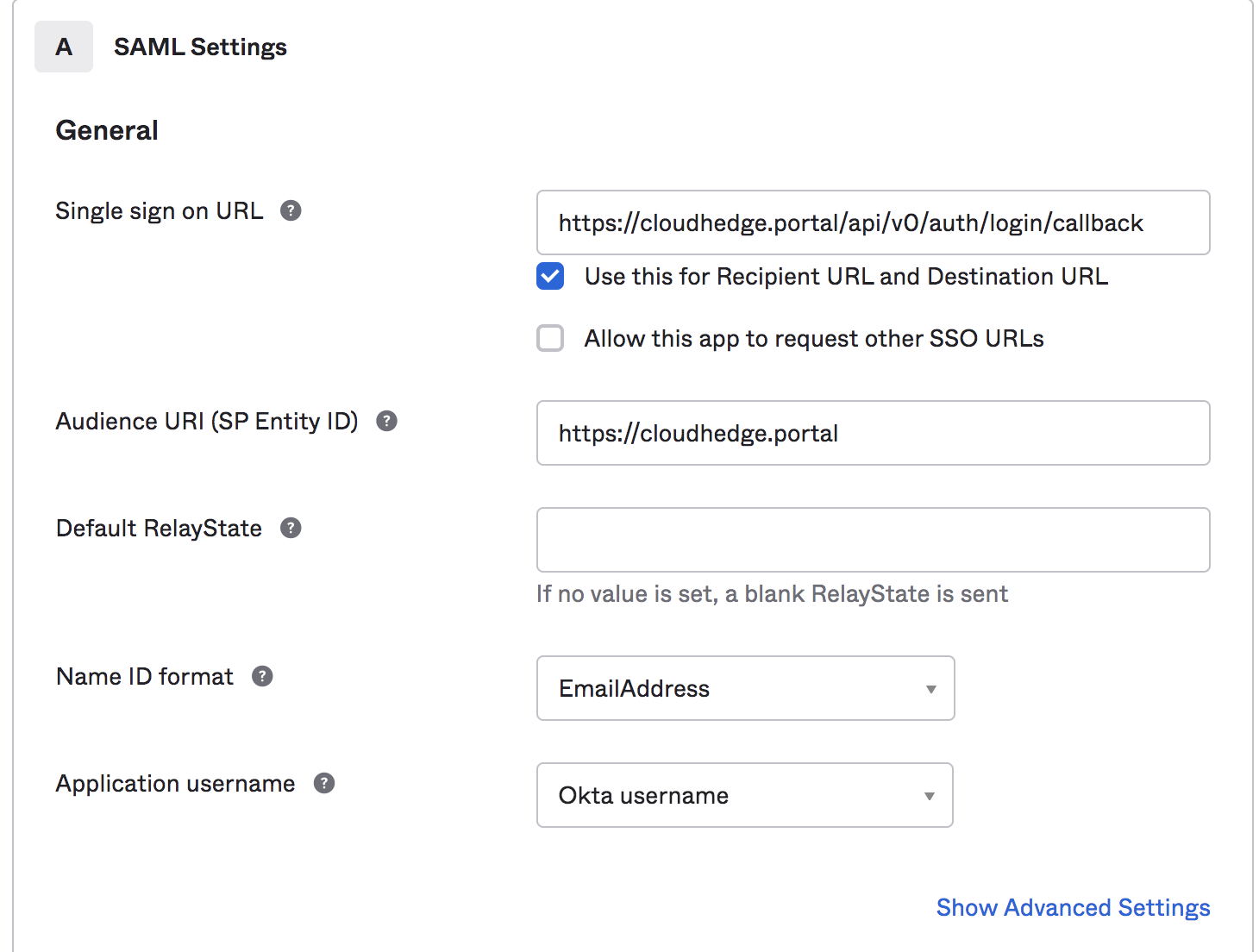

• In the next screen, for "Audience URI (SP Entity ID) " , provide your portal address Example: https://cloudhedge.portal.io

• For "Single Sign On URL" append " " to your portal url like https:///api/v0/auth/login/callback.

• Example:
  • https://app.cloudhedge.io/api/v0/auth/login/callback
  • https://192.168.0.195/api/v0/auth/login/callback

• Click on save button.

• For "Name ID format", select "EmailAddress" And click on Next

• In the next screen, select any of the radio buttons and click on finish.

• Navigate back to the Applications screen and click on the Application you just created.

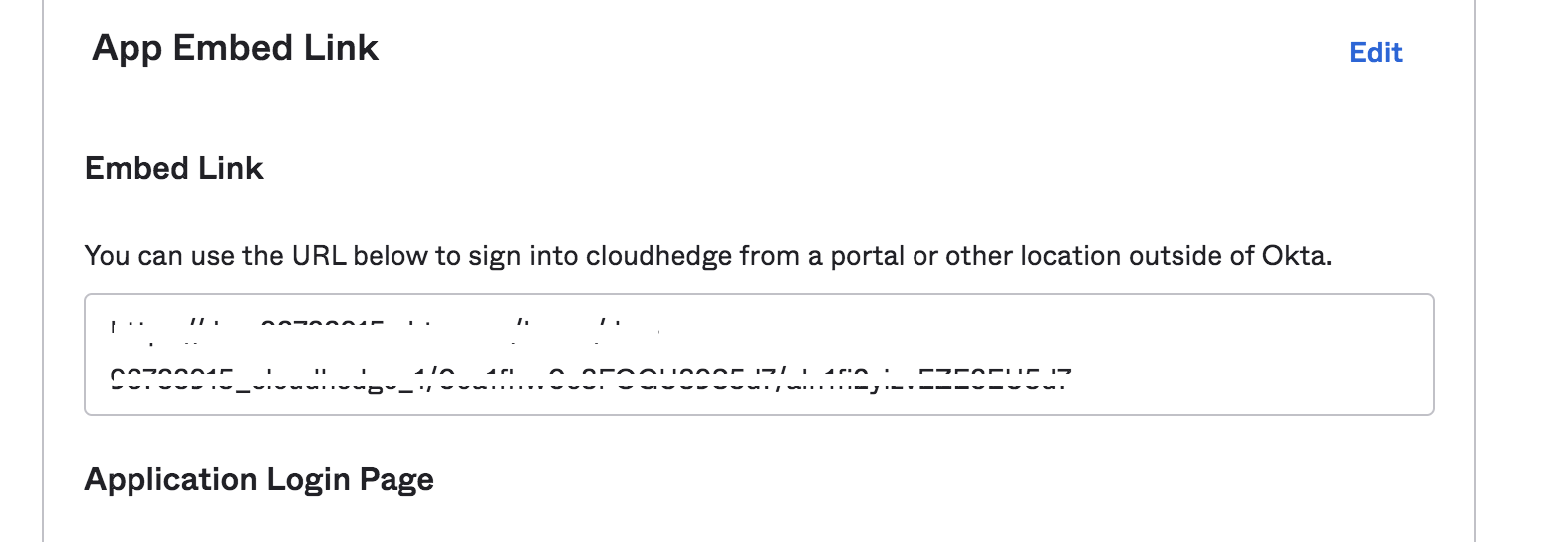

• Click on the General tab and scroll down and copy the Embed link.

• Click on the Sign on tab and copy the Metadata URL value from SAML 2.0 section.
• Paste the URL in the browser.
• Copy the xml content displayed on browser and save it to a file as okta.xml.

• In the left hand navigation, select People under Directory

• Click on Add Person and add users that you need. Have the users change their password and then activate the account.

• Now, in the user page, select the user.

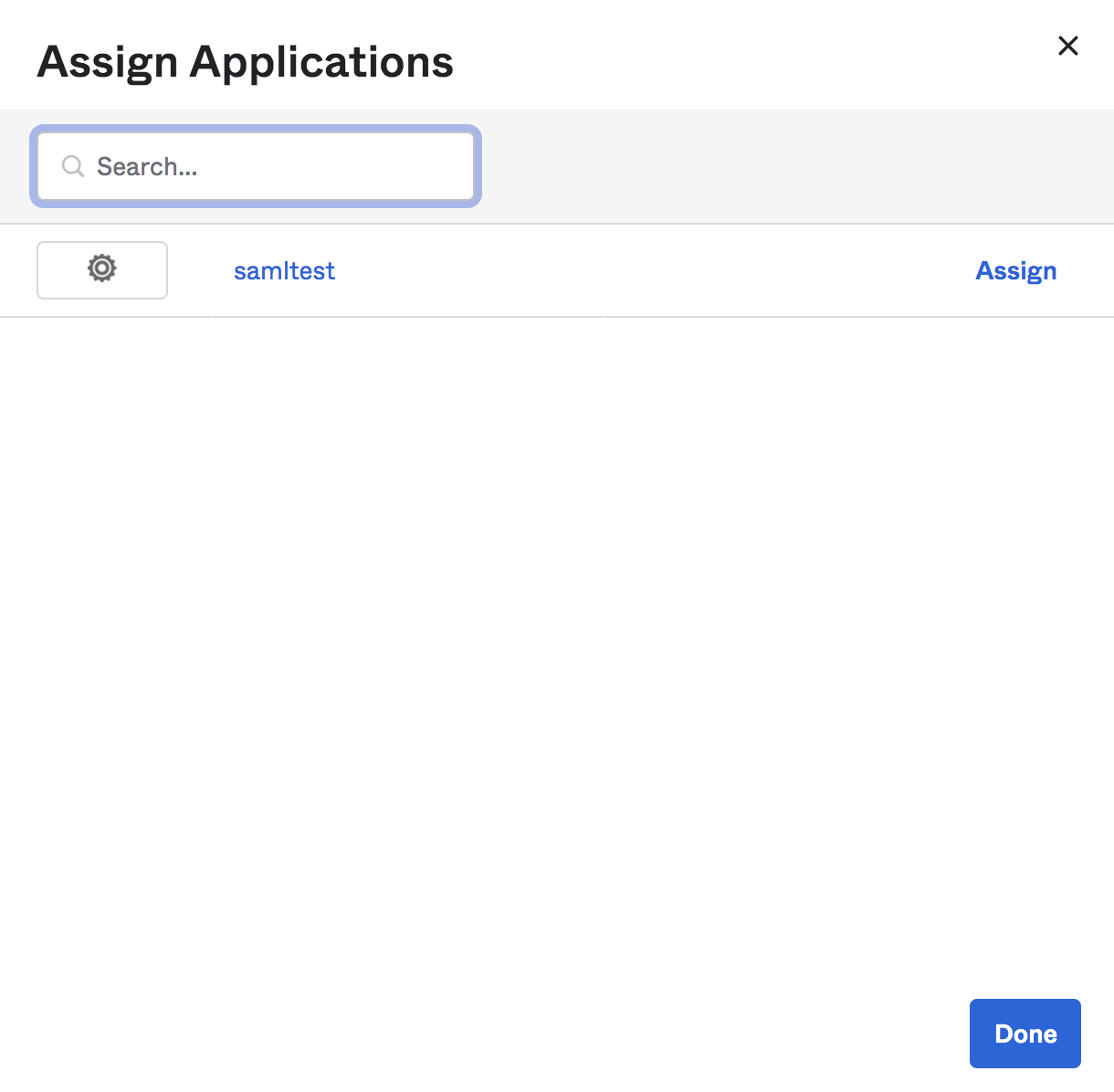

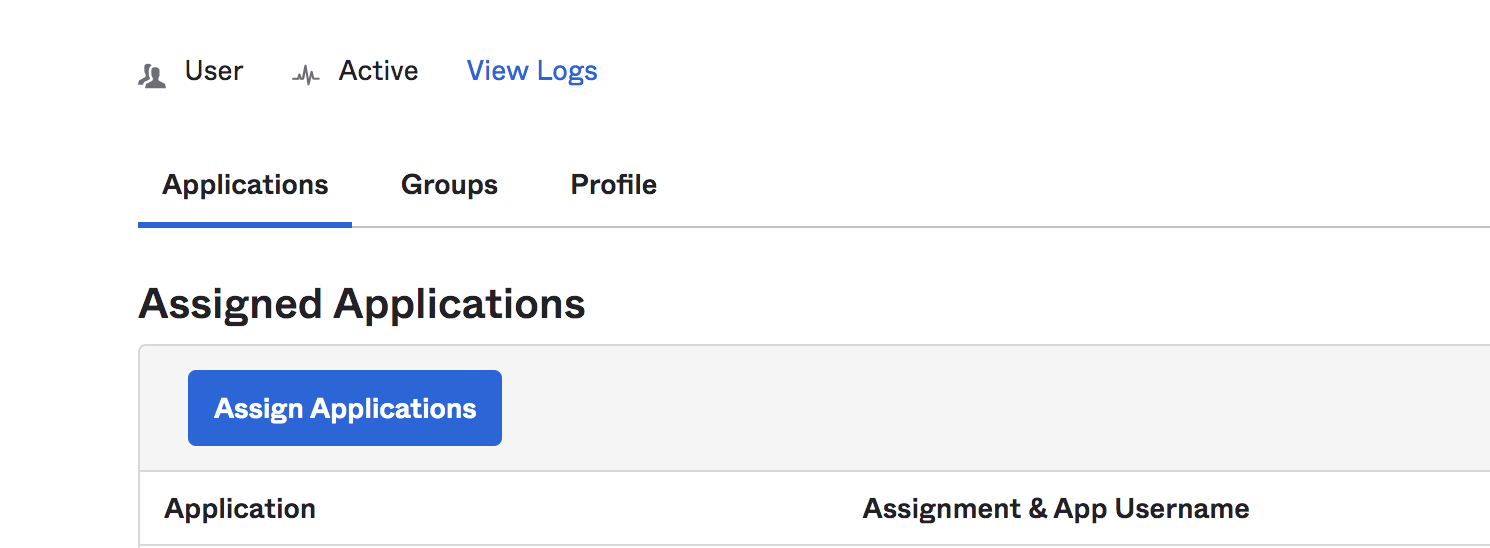

• Click on “Assign Applications” and assign the user the permission to the application you created above.

• Do this for all the users you want to be able to authenticate to the OmniDeq.

• To grant additional permissions to the SAML users, go through the SAML Users section in the link.
