Replica

A number of replicas indicates how many pods should be maintained.

---

Accessing Replica Configuration

1. After logging into CHAI™, click on the project where you want to update the replica count, then click Cruize.



2. Click on the blueprint version count on the blueprint card. After clicking the count, the blueprint versions page will be displayed, which contains a list of blueprint versions.



3. Click on the View configurations kebab menu option or click on the blueprint version name to view blueprint configurations.

4. Go to the Deployments tab and click Edit deployment definition from the Action column of any deployment.

5. The deployment definition page will open. Now go to the Replica tab as shown in the image below.



---

Update Replica

The default value of replica is 1.

Steps to Update Replica

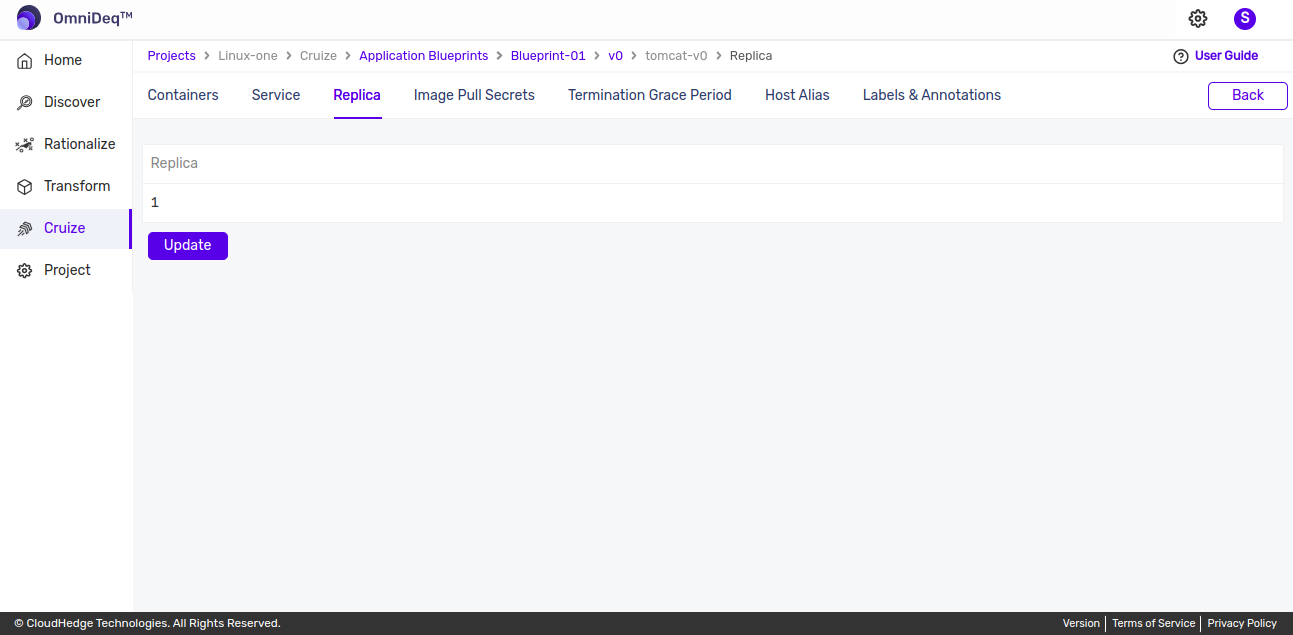

1. Click the Update button to update the value as shown in the image below.

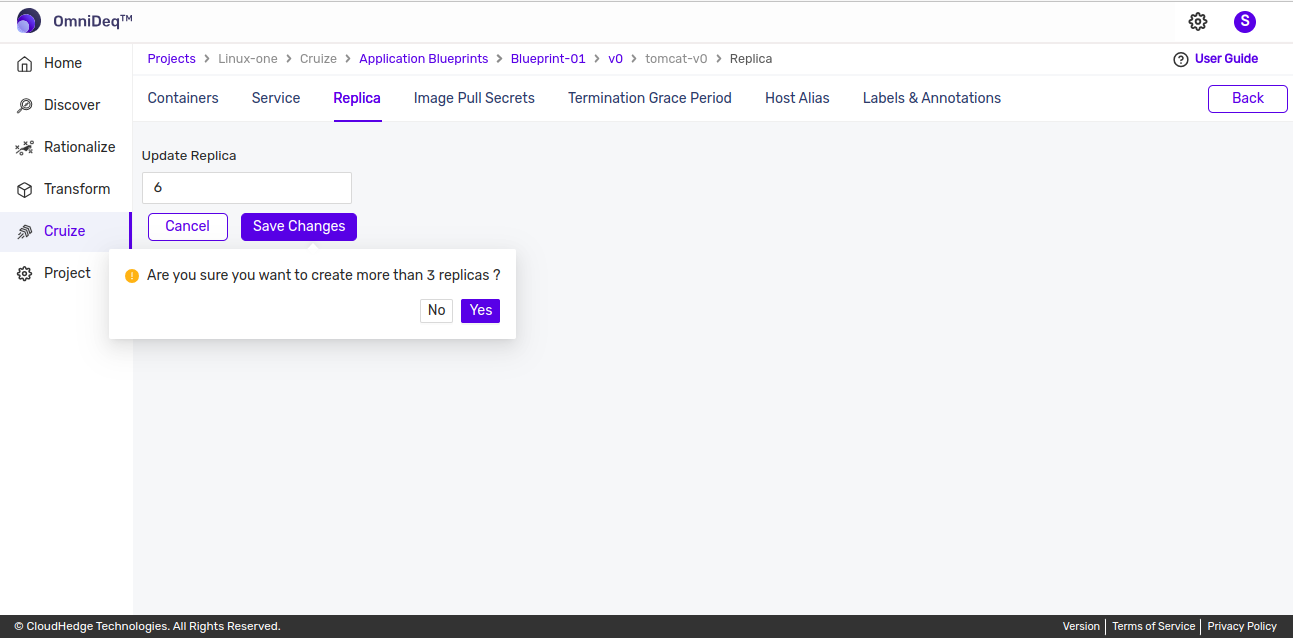

2. If the replica value is greater than 3, after clicking the Update button, a confirmation popup will appear asking for confirmation as shown below.

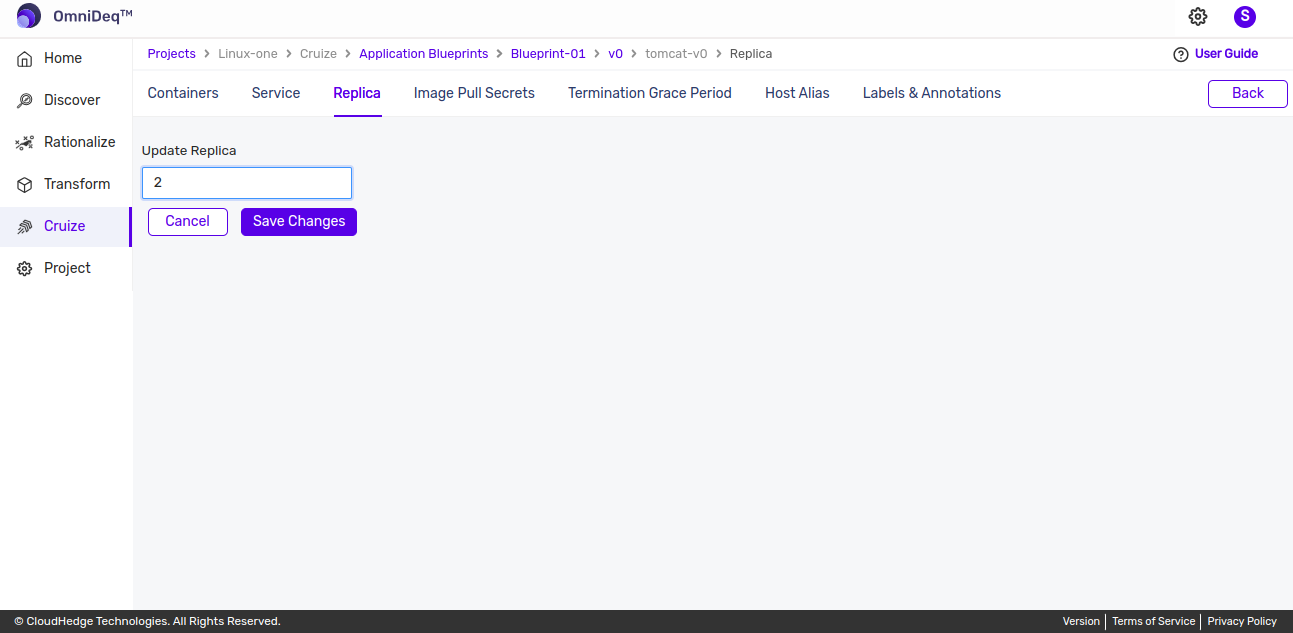

3. Provide the value and click the Save Changes button.

---

Important Note:
Replica value should be greater than 0.
