Netwatch

Netwatch collects information about the inbound and outbound network connections made to the host over a specified duration. Once this information is collected, the details can be downloaded as a csv file which contains details about the IP address, direction of connection, Port, the process making the connection, etc.

Steps to perform Netwatch

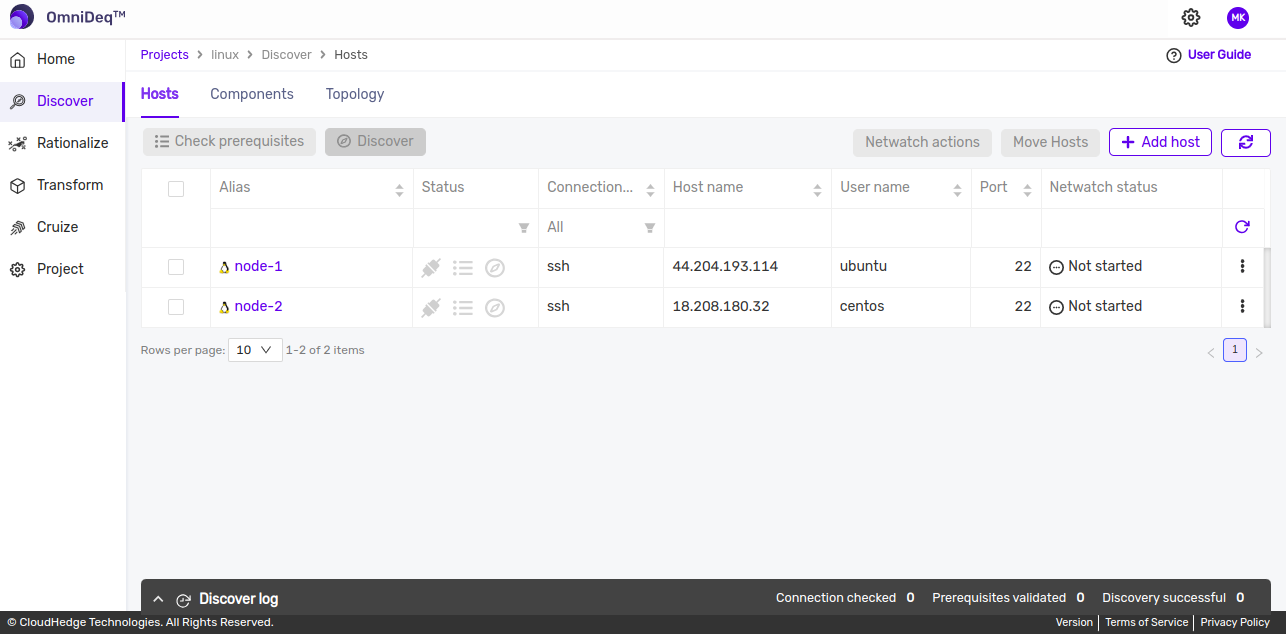

Open Project added earlier and click on Discover. The host(s) are listed in the table. go to discover

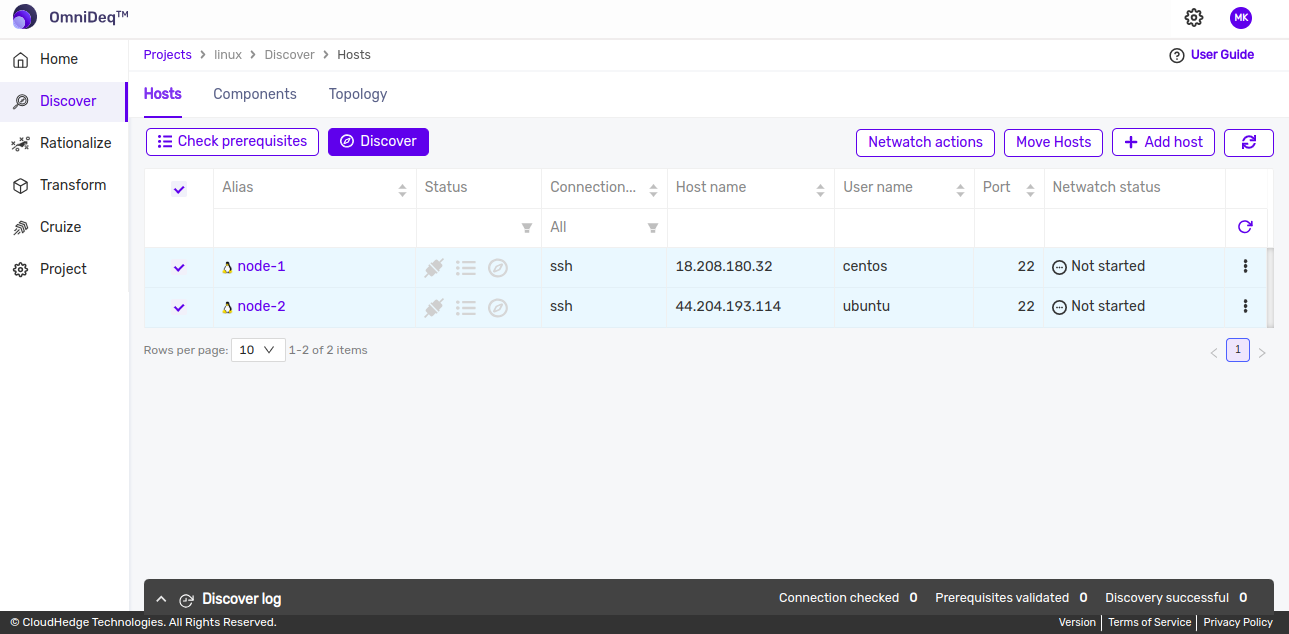

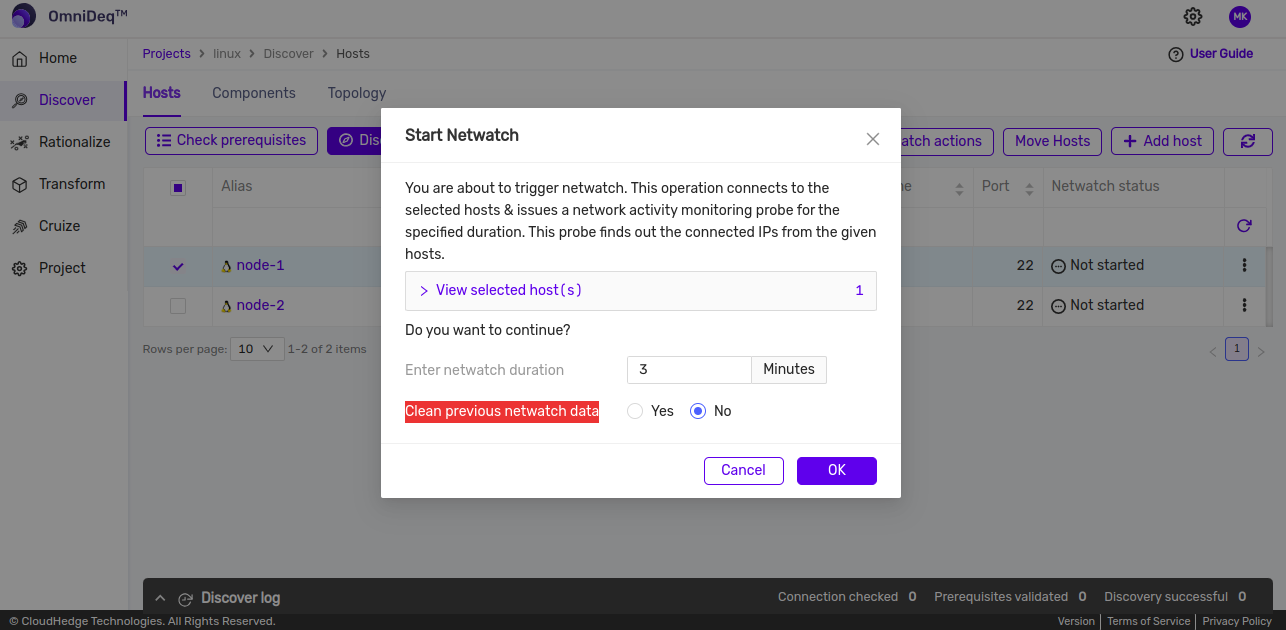

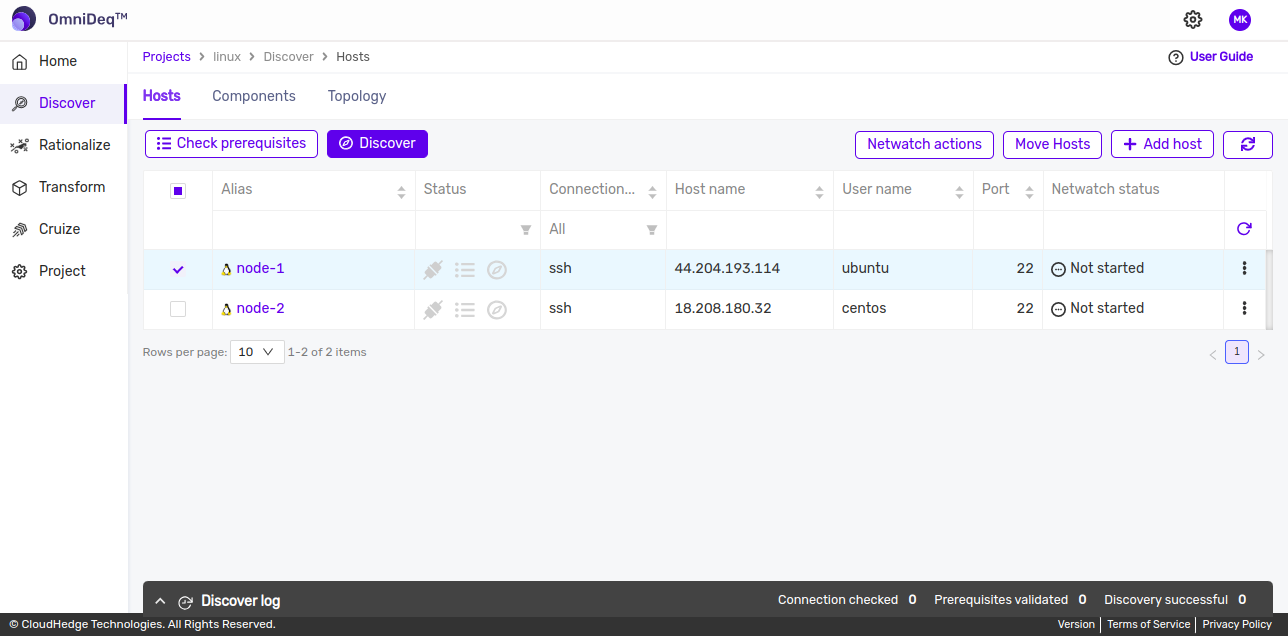

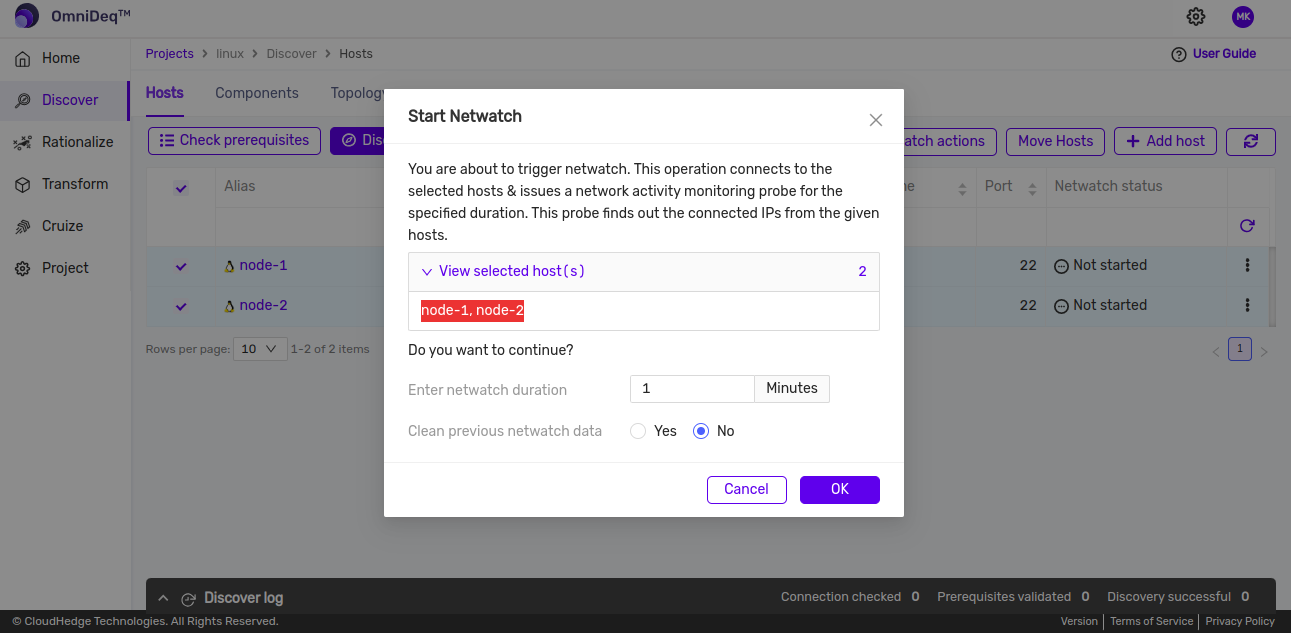

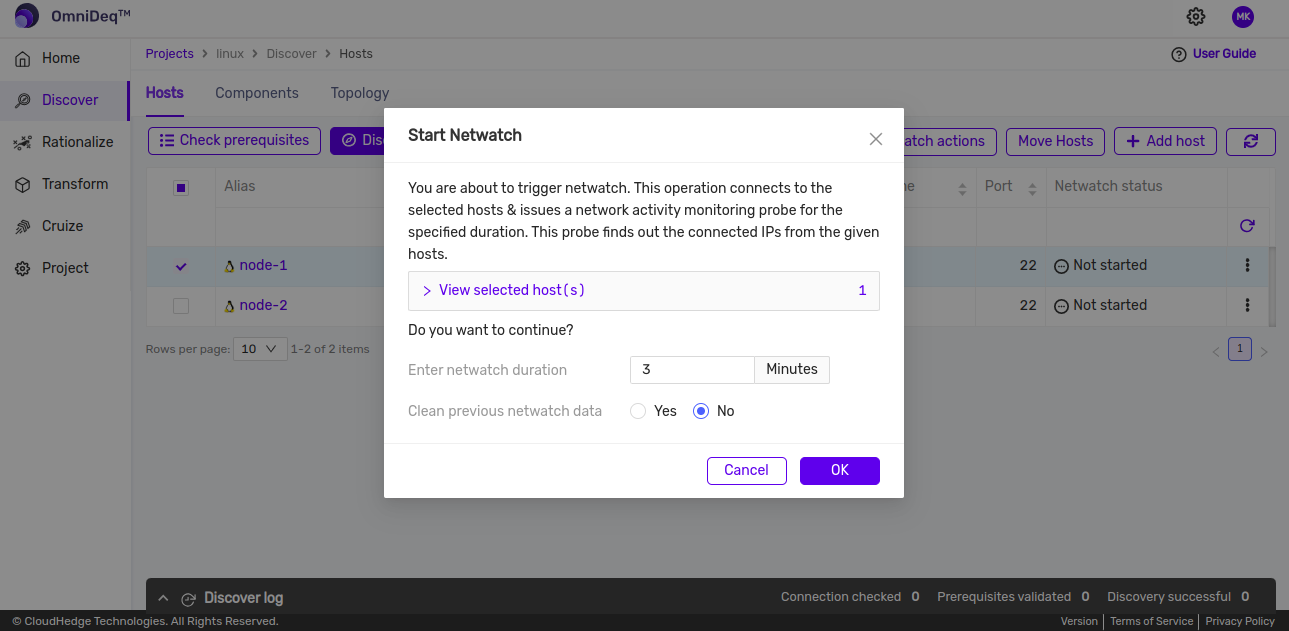

Select a host. You can select multiple hosts as well if required. Select host Select multiple hosts Once the required hosts are selected, click on Netwatch actions and click on Start netwatch Click Start Netwatch A popup confirmation window opens up. You can view the selected hosts, select the duration for running netwatch and clean earlier netwatch data from here Selected hosts Change the netwatch run duration as shown below: Change duration If you would like to clean the earlier run netwatch data Clean data Click on OK to start Netwatch on the selected hosts, click on Cancel to cancel the operation.

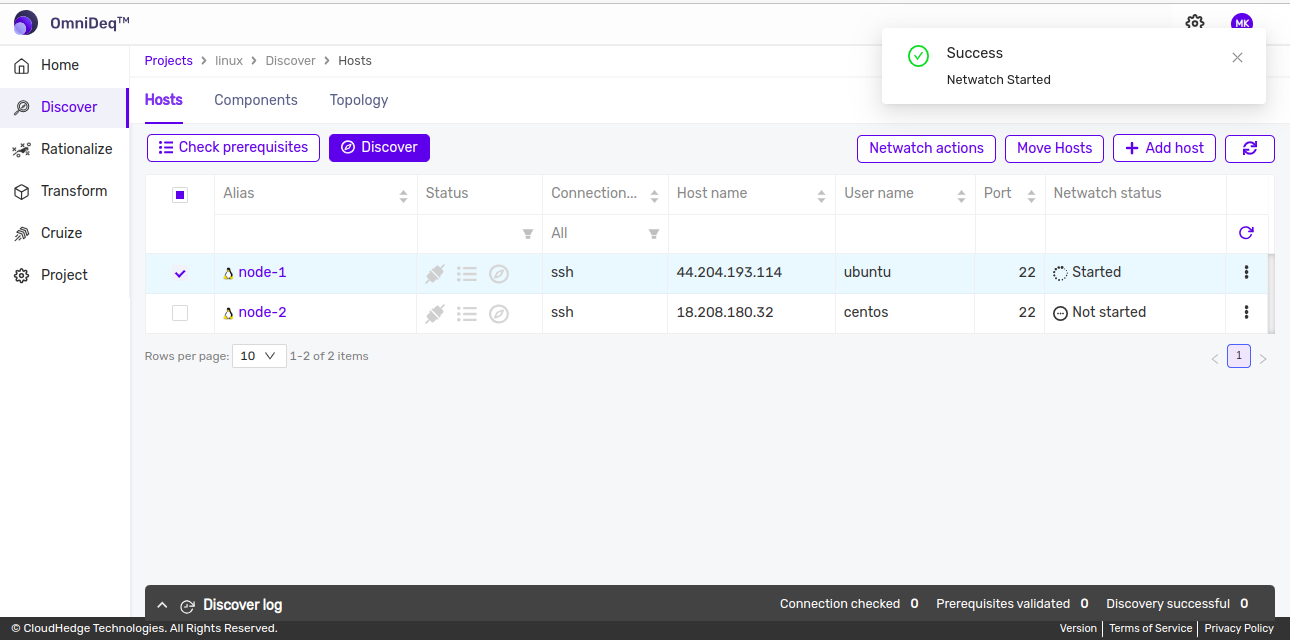

Once you click on OK, you will receive a notification that Netwatch has started Netwatch started Please start using the host as you normally would, accessing the applications installed on it. The network traffic will be captured.

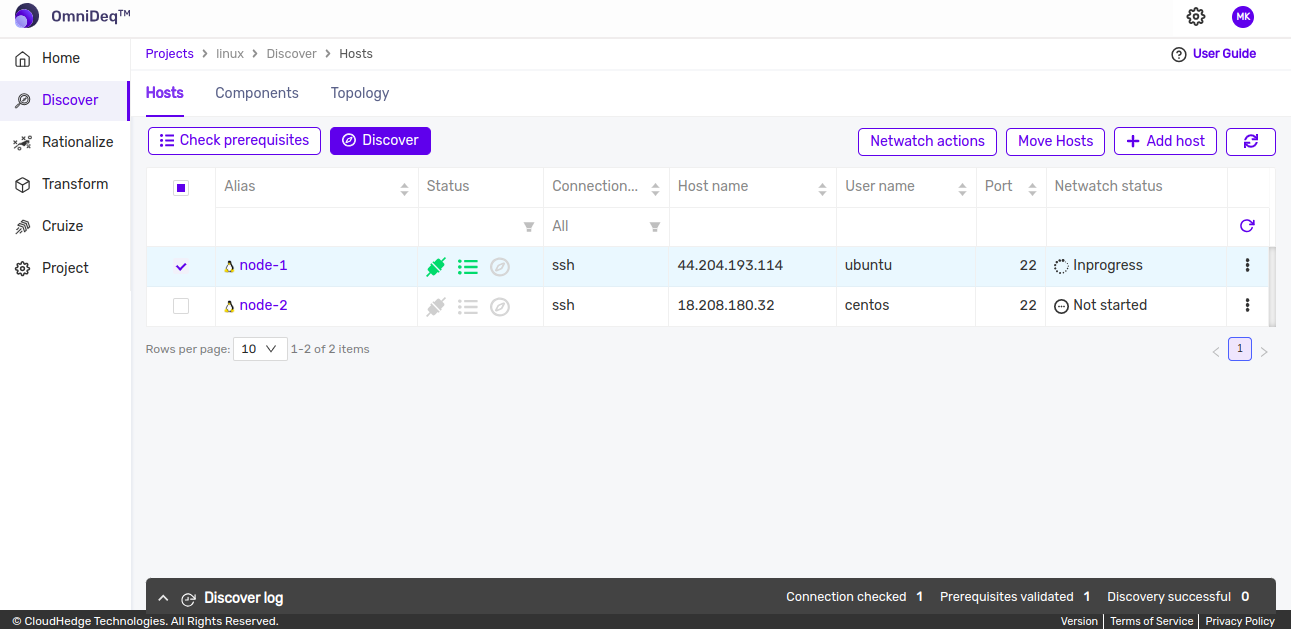

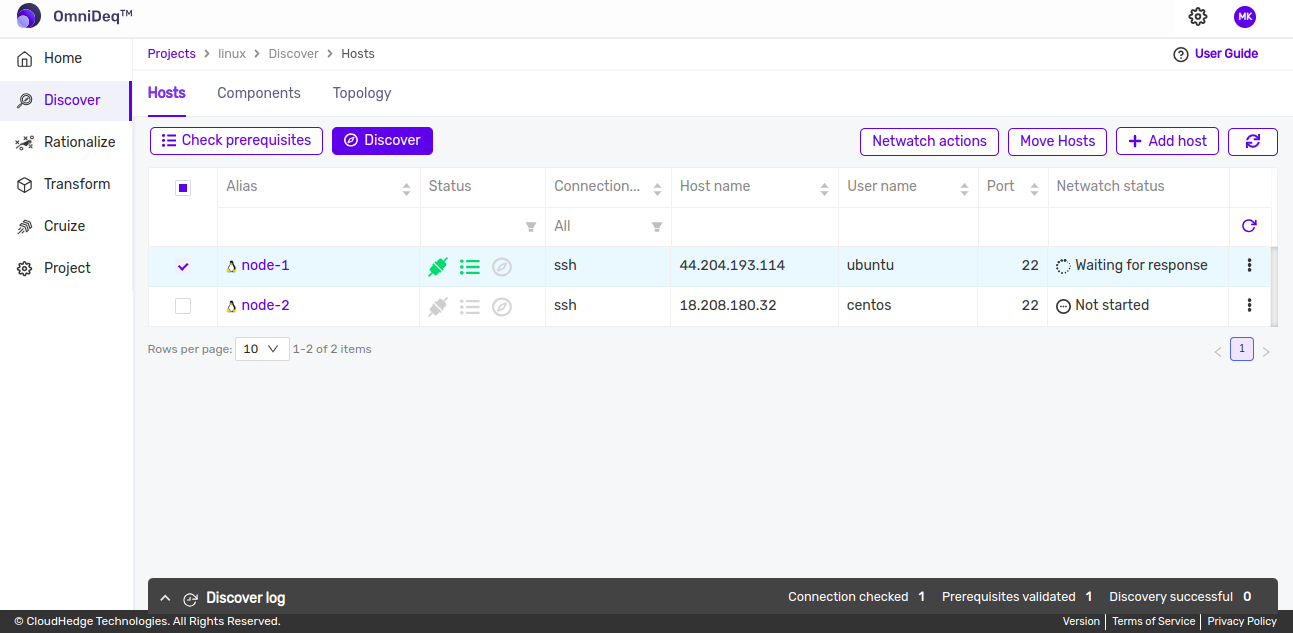

Once Netwatch is started, the Netwatch status will be updated in the Netwatch status column Netwatch waiting for response Netwatch in progress Netwatch completed

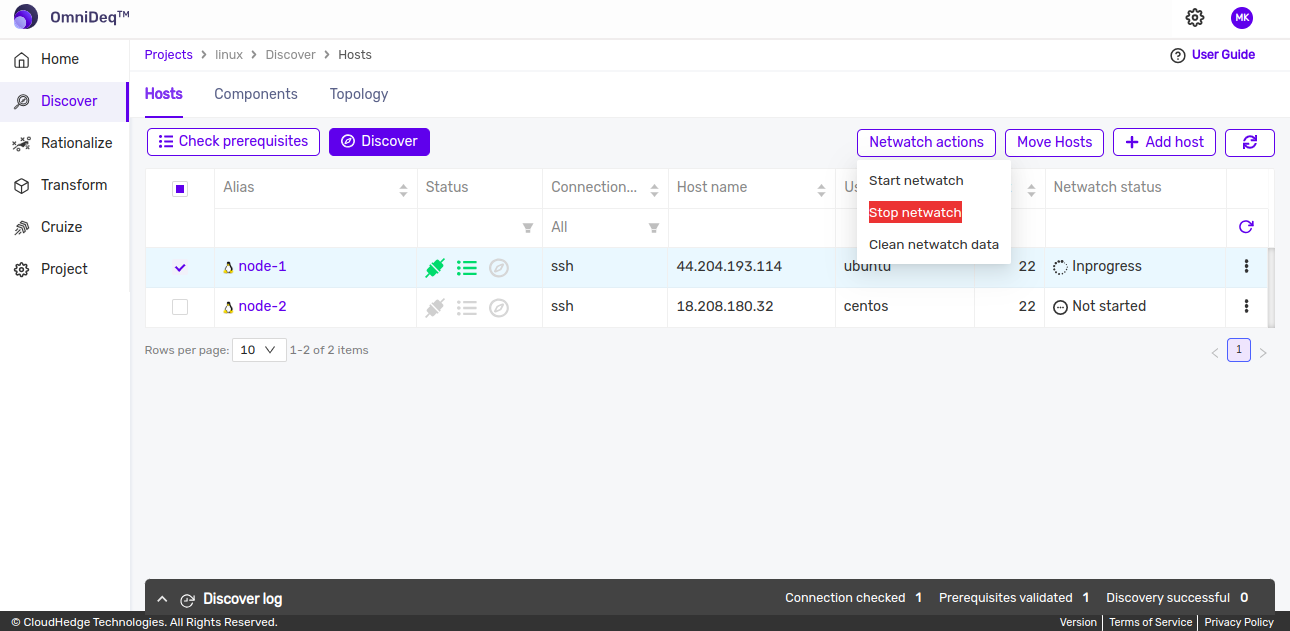

If you would like to stop a running Netwatch, you can select the host, click on Netwatch actions and click on Stop netwatch Netwatch stop

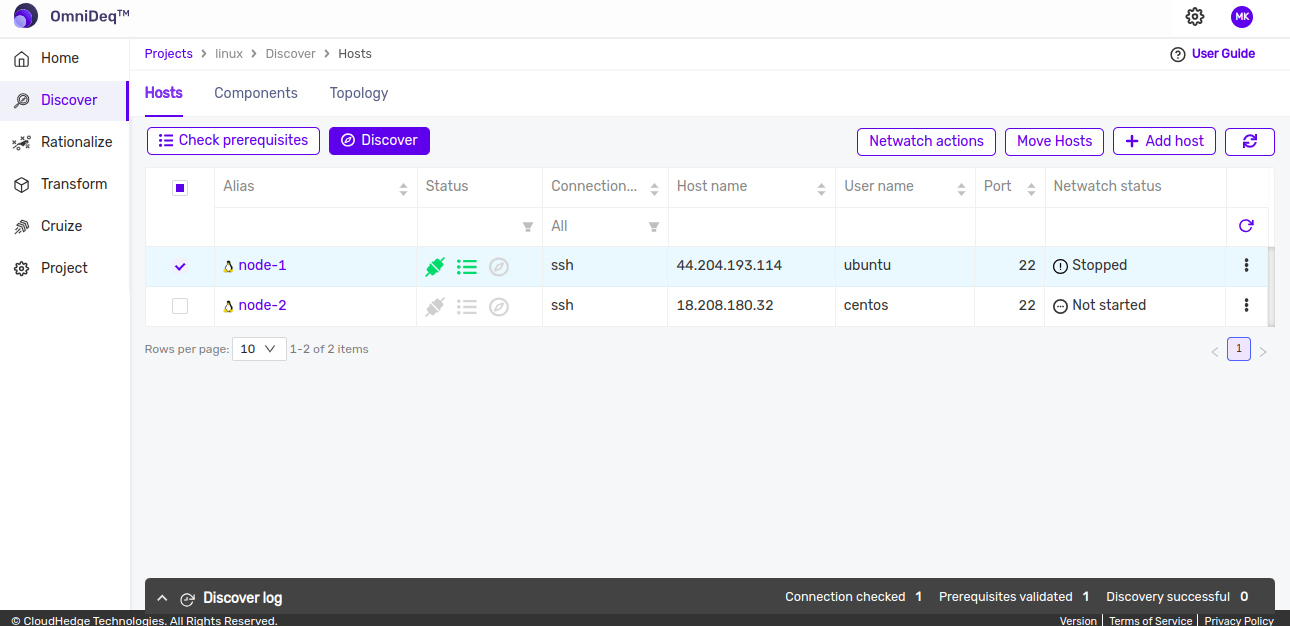

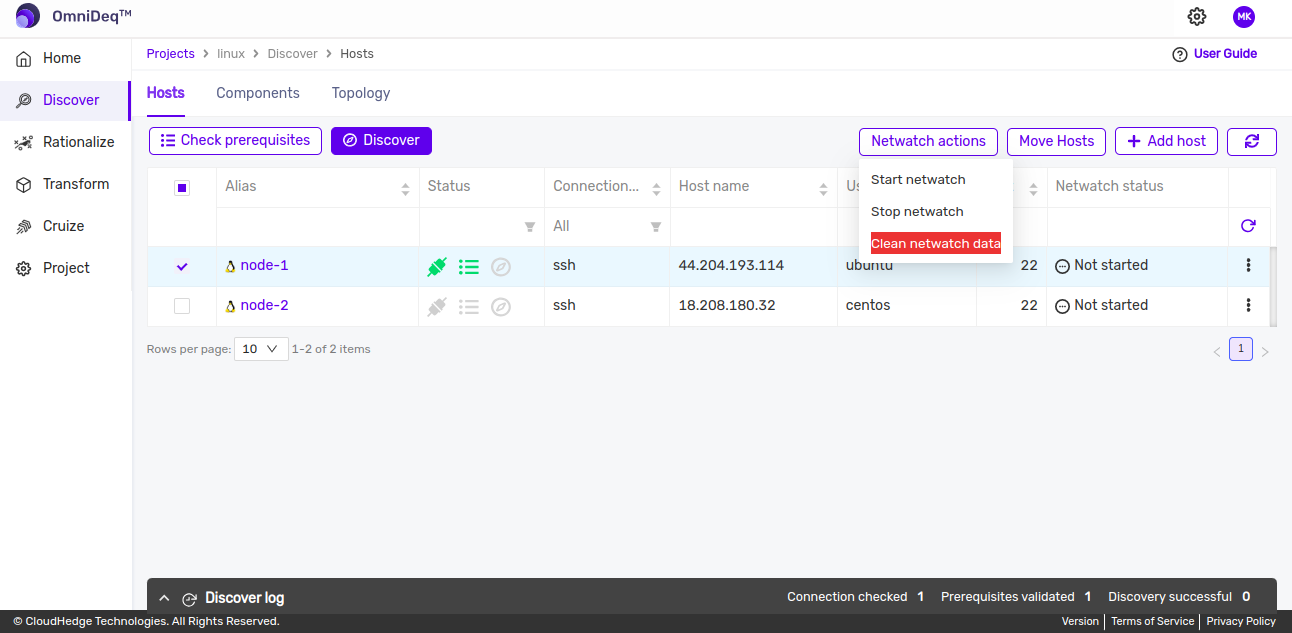

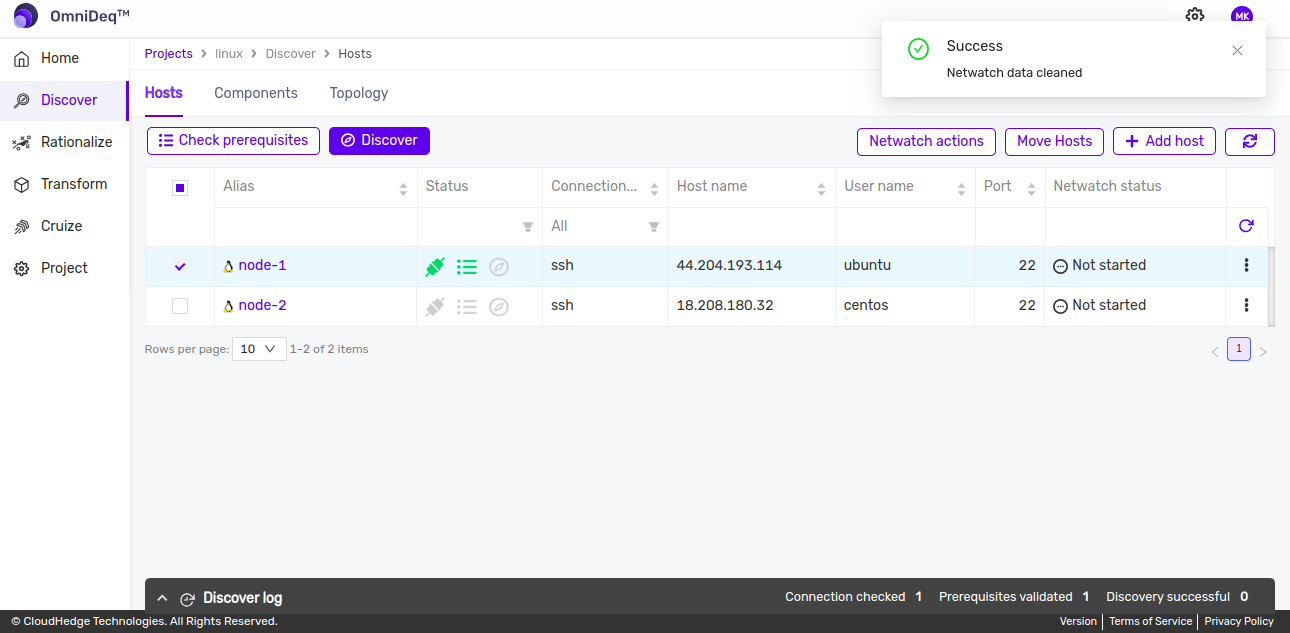

Once Netwatch stops, the status is updated Netwatch stopped status If you would like to clean Netwatch data from a previous run, you can select the host, click on Netwatch actions and click on Clean netwatch data. Please note that once cleaned, there is no way to recover the data. Netwatch clean data You will receive a notification regarding the same Netwatch clean notification Once you have run Netwatch on all the hosts you are interested in, you can download the data in csv form. Navigate to the home page of the project, click on the three horizontal lines located at the upper right corner. Then, select NetWatch Data from the options. By clicking here, you will be able to download the Netwatch data in CSV format. Netwatch download data This opens a popup windows where you can specify ip addresses you would like to ignore ( for example: dns server ip, OmniDeq Server ip, etc) Netwatch ignore hosts After entering the hosts to ignore ( or leaving the entry blank ), click on OK to download the csv file A sample csv image is shown below: Netwatch csv sample image

Field Description
Project_Wave_Name Project name of the source node
Host_Alias Node name of the node for which Netwatch is captured.
Host_IP Host IP of the Node.
Group Allocated group Id of the group of connected nodes containing this node
Connected_Project_Wave_Name Project Name of the connected Node.
Connected_Host_Alias Host IP of the connected Node.
Direction Shows if the connection was inbound or outbound.
Boundary Internal if the connected node is part of any other Omnideq project, External otherwise.
Port For outbound direction, this is the Port number of the Node to which the outbound connection was to. In case of inbound, it is the Port number of the current Node to which the external host is connected to.
ProcessID pid of the process that is holding the connection.
ProcessName process name of the Process that is holding the connection.
Connected_Host_IP IP of the connected Node or Host.

If the IP addresses that are inbound or outbound are present in any of your Projects, they are identified and the Project Name where the IP address is present and the Host Alias is added in the CSV file. And based on the connections, grouping of machines is also suggested in the CSV file.
