Publish OmniDeq Application Blueprint to EKS Cluster

Fetch OmniDeq Application Blueprint details

We have set of instruction in this pdf where you can create and deploy the sample nginx in K8s cluster using Omnideq.

• Login to OmniDeq GUI https://app.cloudhedge.io/ OR "omnideq-appliance-url" and navigate to Cruize -> Application Blueprints.

• We have created a sample application Blueprint called as ‘eshop’. This application blueprint has 2 blueprint versions ‘v0’ and ‘v1’. Each Blueprint version has a different application container image tag.

Publish application blueprint of version ‘v0’ to dev environment

• Execute the below command to publish the application blueprint to the gitops dev environment.

# Execute the following command

Syntax: chctl cruize deploy --eks "<EKS_blueprint_name>" --appBlueprintName "<App_name_from_portal>" --appBlueprintVersion "<app_version>"

Example: chctl cruize deploy --eks "od-eks-dev-01" --appBlueprintName "eshop" --appBlueprintVersion "v0"

#Check the deployed apps

Syntax: chctl cruize getDeployedApps --eks <EKS_blueprint_name>

Example: chctl cruize getDeployedApps --eks od-eks-dev-01

• The above command will publish eshop application artefacts to the git repository monitored by ArgoCD in the EKS cluster “od-eks-dev-01”. This ArgoCD will try to deploy this application to the od-eks-dev-01” EKS cluster. You can check the status of the deployment by navigating to the ArgoCD UI - https://localhost:8443

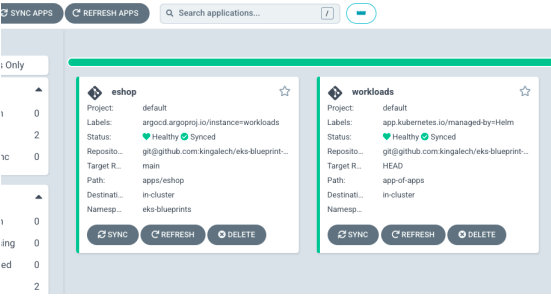

• You will see that ArgoCD creates a new Application with the name eshop and will deploy the application on the cluster

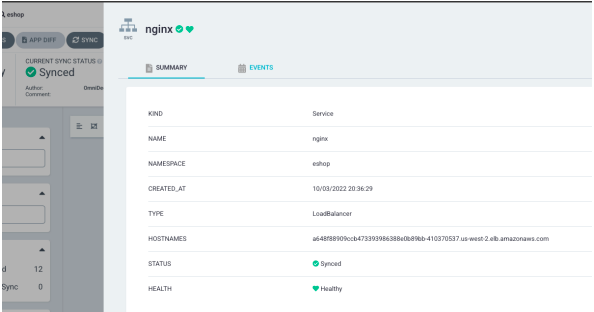

• Navigate inside the application through ArgoCD and view details of the web-host (nginx) service. You will find the Load balancer address of the nginx service which is the frontend for the application.

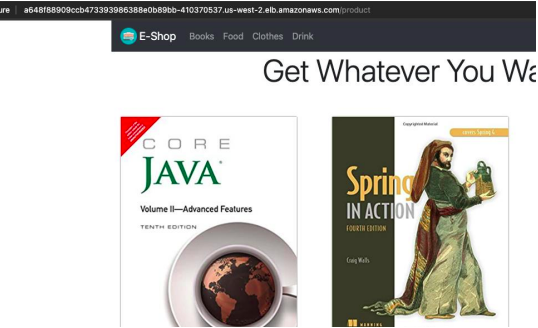

• Open the loadbalancer address in the browser and check the application.


Fetch Deployed Application details

• Execute the below command to get the deployed application blueprint.


# Execute the following command

chctl cruize getDeployedApps --eksBlueprintName “od-eks-dev-01"
